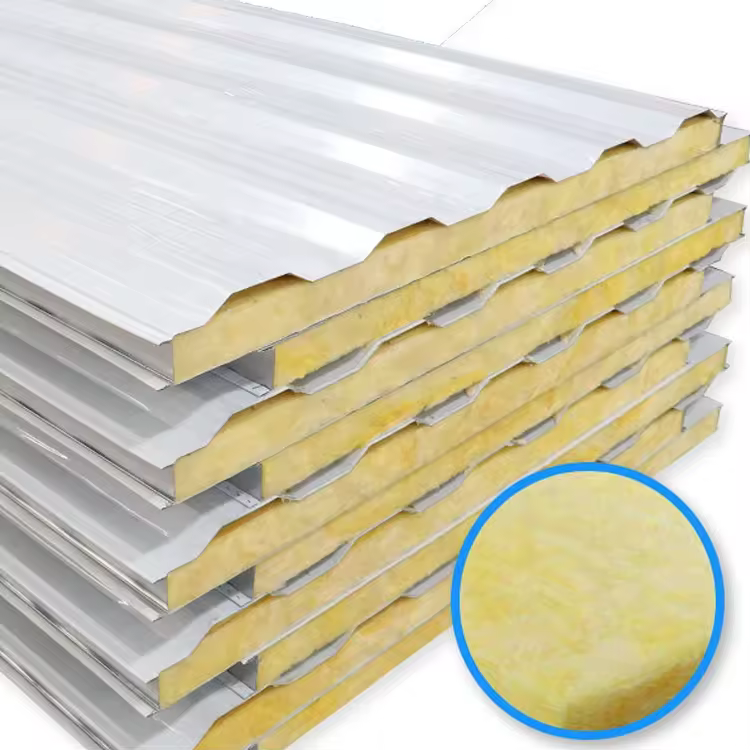

glass wool sandwich panel
Glass wool sandwich panel
- double side:0.3-0.75mm PPGI or Alu. sheet
- painting:PE/SMP/PVDF/HDP/ Painting
- Warranty: 10-25 years Auti-rust
- Color:based on Ral or your swatch
- Core Material :50-120kgs/m3 rockwool
- Cover width for wall:950/1150mm
- Thickness:40/50/75/100/150mm
- Anti-fire Grade:A1
- Anti-water Grade:better
- U-value(w/m2k) 100mm roof:0.42(core.>100kgs/m3
- Locking system for wall:H type locking with self-drilling screw
production description
Glass wool is a kind of light-weight, heat-resistant, elastic and non-combustible insulation material. It is widely used in chemical, pharmaceutical, factory, heavy industry machinery and equipment, construction, vehicles, and aerospace. It is an ideal heat-dissipating, fire-proof and sound-absorbing material.
| Allowable vertical load and thermal conductivity of the fireproof glasswool sandwich wall panel (allowable deflection f≤L/240) | ||||||||
| S(mm) | W/m2k | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.69 | 13.1 | L(m) | 3.84 | 3.38 | 3.05 | 2.79 | 2.49 |
| 75 | 0.47 | 14.73 | L(m) | 4.93 | 4.31 | 3.87 | 3.52 | 3.12 |
| 100 | 0.36 | 16.36 | L(m) | 5.89 | 5.15 | 4.60 | 4.18 | 3.69 |
| 150 | 0.33 | 19.61 | L(m) | 7.69 | 6.71 | 6.00 | 5.44 | 4.80 |

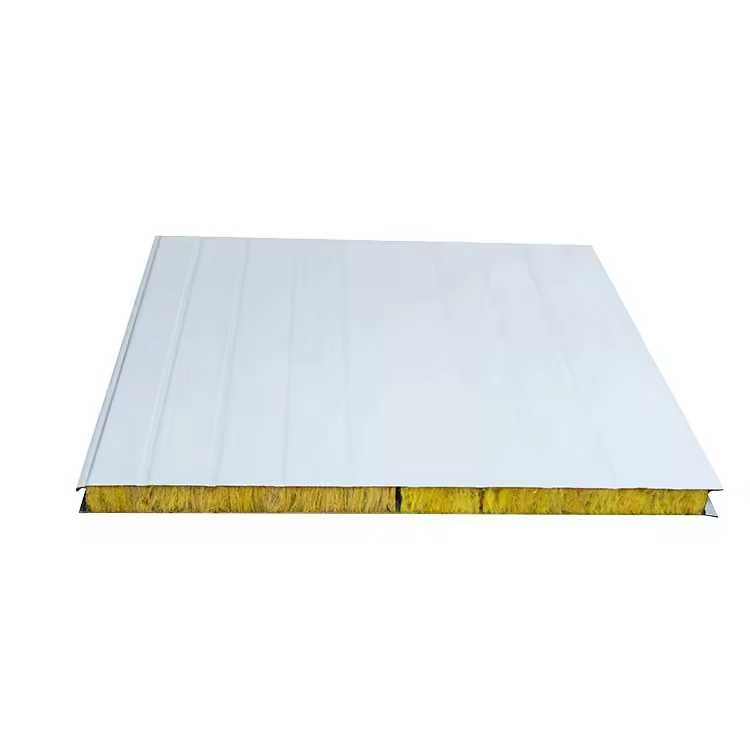

glass wool sandwich panel for wall
Our free sample policy:
If you need one, let us know the detaied specifics, such as what kind of panel,and contact us by [email protected]
